ALUMINUM HEAT SINKERS FOR MOSFETS

List of aluminum profiles suitable for the production of heat sinks, available in stock also for small quantities

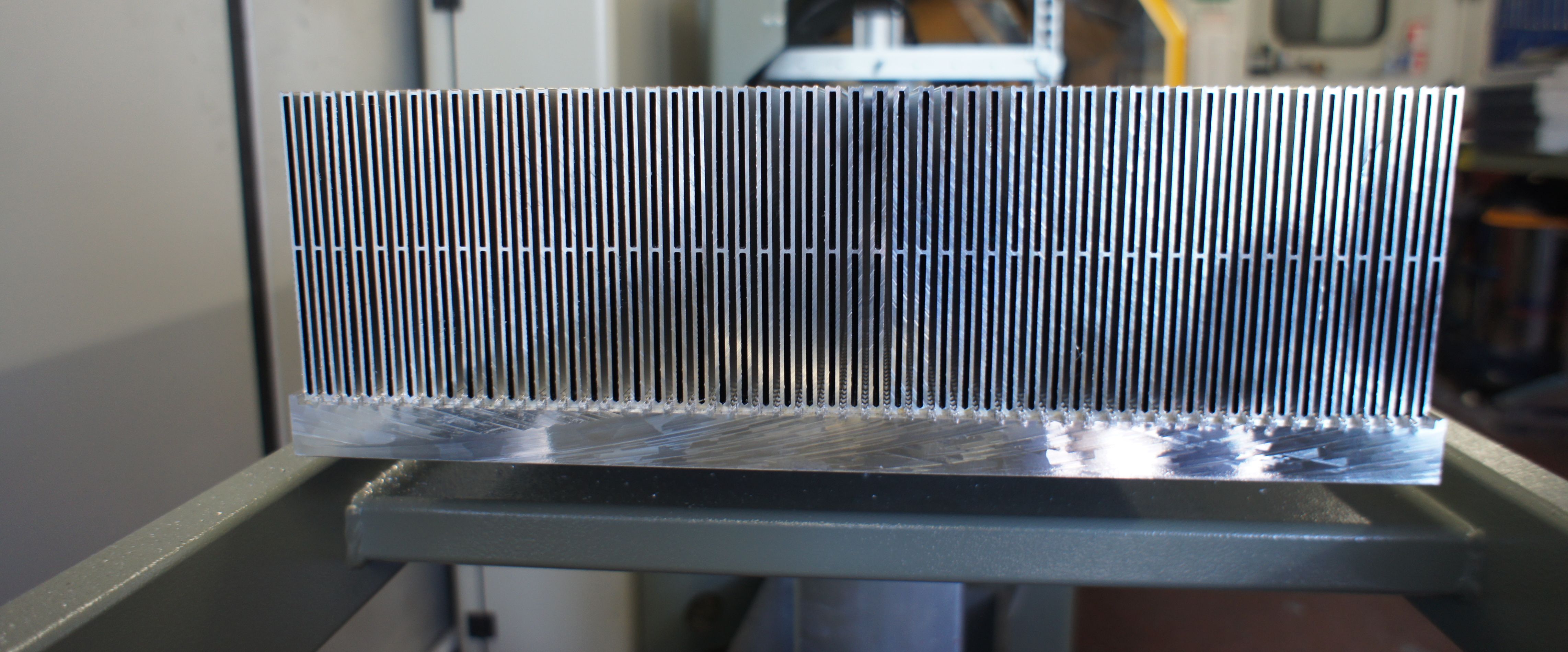

aluminum dissipating fins for electronics



Complete range of our aluminum profiles available on the website: www.omar- Alluminio.it

sheared U heat sinks

Heat sink table sorted by the size indicated in the drawing with "A". The length of the bars (indicated in the drawing with "L") varies from 2 to 4 meters depending on the heat sink model. Custom cuts are made on aluminum profiles

Code
Heatsink bar size

AxB (mm)

DRAWING (OUT OF SCALE)
2273
7,8x7,8
sectional aluminum heat sink
3097
11,8x11,8
sectional aluminum heat sink
2100
13x13
sectional aluminum heat sink
2142
14,4x14,4
sectional aluminum heat sink
2139
17,4x17,4
sectional aluminum heat sink
2216
17,4x17,4
sectional aluminum heat sink
534
18,5x11,5
sectional aluminum heat sink
811
19x48
sectional aluminum heat sink
526
20,1x15,4
sectional aluminum heat sink
808
22x22
sectional aluminum heat sink
2036
24x16
sectional aluminum heat sink
533
24x18,62
sectional aluminum heat sink
616
24x83
sectional aluminum heat sink
527
25,4x12,1
sectional aluminum heat sink
2248
26,5x24,1
sectional aluminum heat sink
446
26x34
sectional aluminum heat sink
400
27,82x13,5
sectional aluminum heat sink
809
28x32
sectional aluminum heat sink
839
29x11,5
sectional aluminum heat sink
810
30x22
sectional aluminum heat sink
2202
30x36
sectional aluminum heat sink
2199
31x80
sectional aluminum heat sink
909
32x26
sectional aluminum heat sink
500
32x32
sectional aluminum heat sink
868
32,2x7,62
sectional aluminum heat sink
884
34x60
sectional aluminum heat sink
404
35x13
sectional aluminum heat sink
406
34,5x12,5
sectional aluminum heat sink
2119
35x20
sectional aluminum heat sink
893
35x35
sectional aluminum heat sink
408
35x44
sectional aluminum heat sink
837
36,5x45
sectional aluminum heat sink
401
36,8x15
sectional aluminum heat sink
402
36,8x15
sectional aluminum heat sink
812
37,5x3,1
sectional aluminum heat sink
2129
38x20
sectional aluminum heat sink
833
38x28,5
sectional aluminum heat sink
442
38x54
sectional aluminum heat sink
