ALUMINUM HEAT SINKERS FOR TO3 COMPONENTS

List of aluminum profiles suitable for the production of heat sinks, available in stock also for small quantities

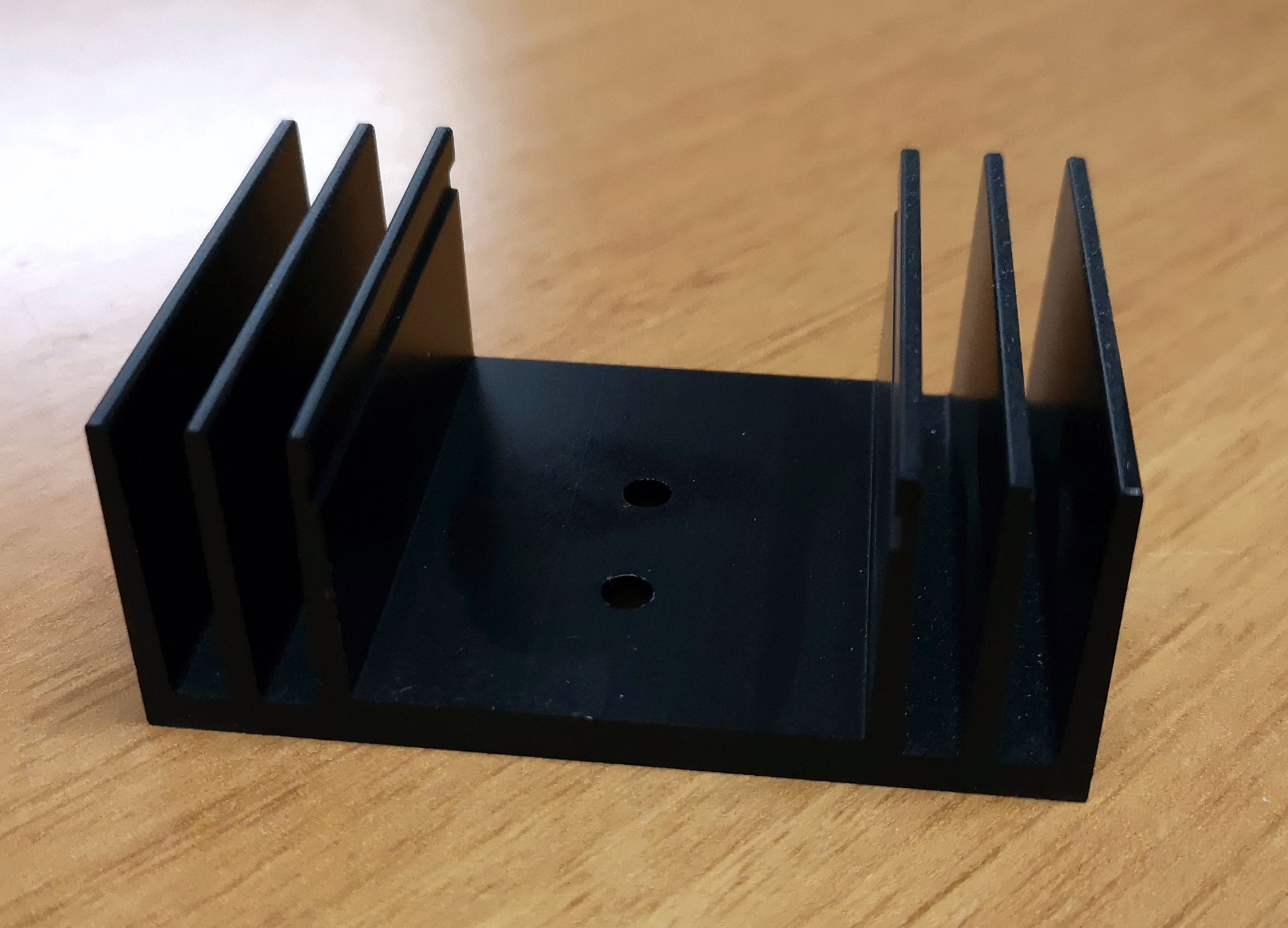

black anodized heatsink for To3



Complete range of our aluminum profiles available on the website: www.omar- Alluminio.it
sheared U heat sinks

Heat sink table sorted by the size indicated in the drawing with "A". The length of the bars (indicated in the drawing with "L") varies from 2 to 4 meters depending on the heat sink model. Custom cuts are made on aluminum profiles

Code
Heatsink bar size

AxB (mm)

DRAWING (OUT OF SCALE)
809
28x32
sectional aluminum heat sink
839
29x11,5
sectional aluminum heat sink
2134
44x12
sectional aluminum heat sink
815
50x24
sectional aluminum heat sink
816
 60x24
sectional aluminum heat sink
817
 65x24
sectional aluminum heat sink
908
 68x35
sectional aluminum heat sink
845
 80x14
sectional aluminum heat sink
818
 80x24
sectional aluminum heat sink
819
 85x18
sectional aluminum heat sink
820
94x14,5
sectional aluminum heat sink
822
94x25
sectional aluminum heat sink
823
97x25
sectional aluminum heat sink
825
100x65
sectional aluminum heat sink
831
150x24
sectional aluminum heat sink




Other way to search heat sinks by section type:

comb aluminum dissipator Comb-section aluminum heat sink assembly

aluminum heatsink sectionAluminum heat sink assembly with "double vertical comb" section

small aluminum heat sinksHeatsink group with section

heat sink drawn in sectionHeatsink group with section

aluminum profile drawn in sectionHeatsink group with section

electronics heatsinkHeatsink group with section

extruded aluminium: drawingHeatsink group with section

aluminum profile for electric motorsHeat sink unit with "round finned" section for electric motors

container for electronic instruments with dissipating finsHeat sink group with finned container section for electronic equipment

flower dissipator in aluminum"Round - flower for LED" heatsink group

drilled heat sinkHeatsink assembly "pre-drilled and anodized heat sinks"
