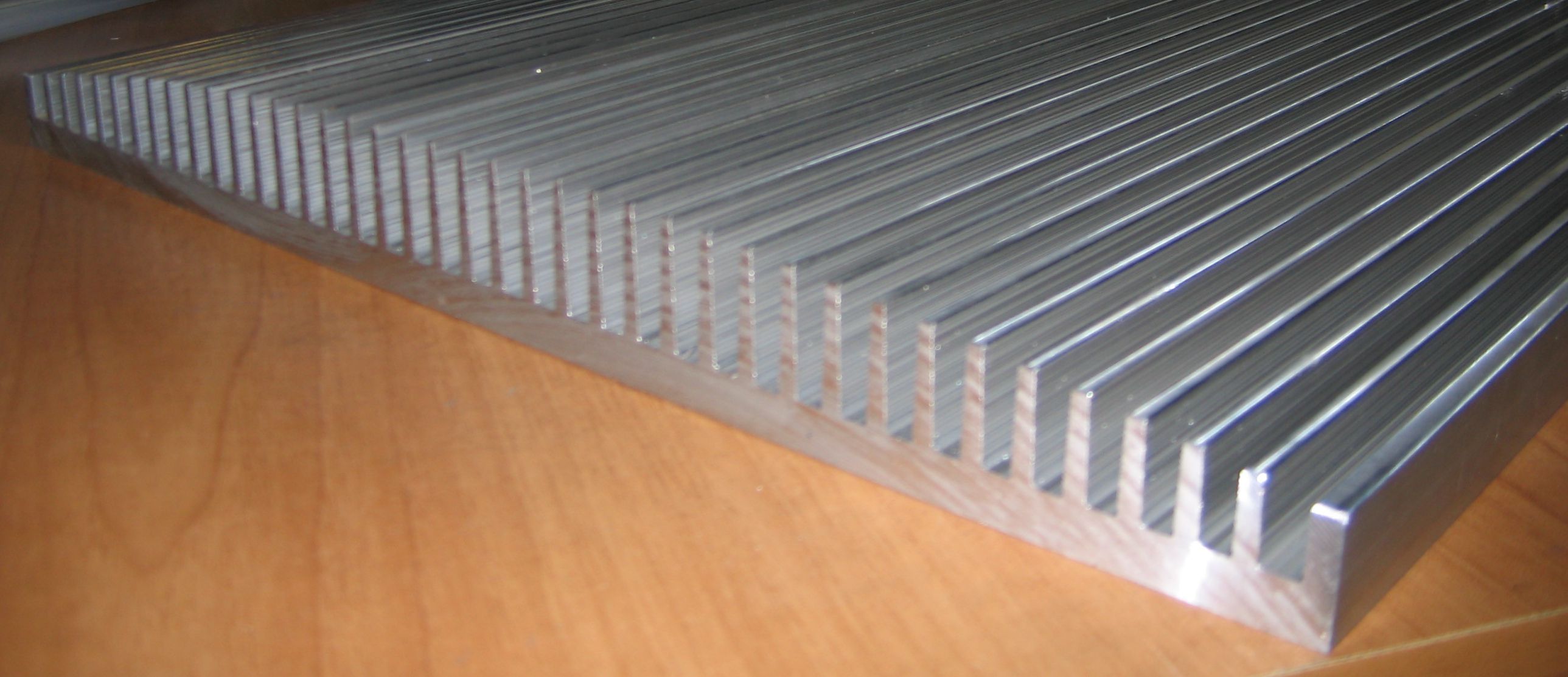

"COMB" FINNED ALUMINUM HEAT SINKERS FOR ELECTRONICS

List of aluminum profiles suitable for the production of heat sinks, available in stock also for small quantities, usually in 4m bars:

Complete range of our aluminum profiles available on the website: www.omar- Alluminio.it

Heat sink table sorted by the size indicated in the drawing with "A". The length of the bars (indicated in the drawing with "L") varies from 2 to 4 meters depending on the heat sink model. We perform cuts to size and machining of aluminum profiles

Code	AxB (mm)	DRAWING (OUT OF SCALE)
811	19x48
808	22x22
2265	25x17
810	30x22
2202	30x36
868	32,2x7,62
884	34x60
2119	35x20
893	35x35
837	36,5x45
812	37,5x3,1
833	38x28,5
883	40x7,62
888	40x9
934	40,82x24,99
2266	41,4x30,5
834	40,1x35
915	41,4x34
919	42x15
914	42x44

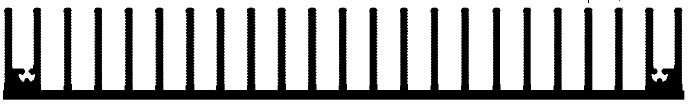

974	43,2x16,51
882	47,5x19
2181	48x39,5
2158	50x40
963	52x40
916	52,5x70
863	54,48x17,95
857	56x40
856	59,43x25,3
832	64,5x9
906	66x40
2112	67,5x25
2176	70x35,5
831	72x30
867	74x30
842	75x10
858	76x30

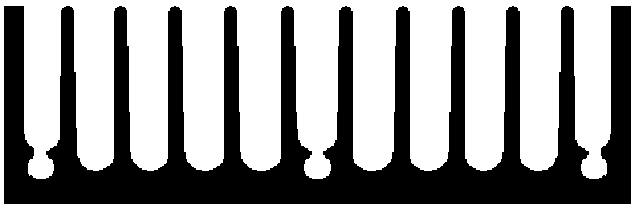

2197	80x26
976	82x32
847	82x32
907	84x40
2125	86x48
824	90x37
890	95x70
978	99,4x16
886	100x15
2193	100x19
970	100x25
931	100x35
849	100x40
917	109x39,5
900	112x67,5
827	113x37
971	115x80
2235	120x22,5
889	120x58

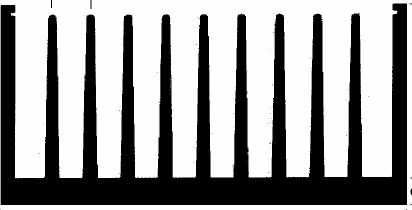

983	120x64
2148	121x25

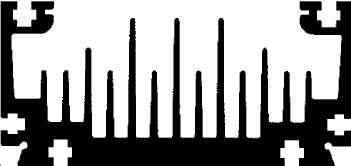

903	121x58,5
2153	125,5x83
936	130x55
814	135x20
2170	138x33
905	138x40
805	145x8,2
803	150x5,5
830	150x26
848	150x26
904	150x27
885	150x40
838	154x8,5
878	155x43,5
887	158x15
850	160x40
967	160x50
891	161,25x50,2
898	162x25
826	164,5x26,9
846	172x13,5
912	173x28
968	177,5x40
940	181x56,5
998	183,6x15
824	188,5x11,5
804	190x50
624	190x68
901	190x75
852	197x20
896	200x15
881	200x20
853	200x25
2234	200x29,4
937	200x39
928	200x40
924	200x40
835	200x40,3
911	200x65,5
880	200x72
879	200x72
932	200x83
984	200x85
2182	200x90
623	213x40
946	215x50,5
925	215x77
947	216x77
872	216x83
950	220x76,5
873	235x60
622	244x57,5
897	245x25
855	250x40
933	250x40
821	250x80,5
894	230x80,5
875	250x83
902	260x67
874	265x74
899	300x25
996	300x39,7
836	300x40
865	300x40
2249	300x65
876	300x83
926	300x83
930	300x84
979	300x84
2155	301,5x71
962	320x75,5
918	345,5x40
910	362x35
813	400x40
871	400x40
980	400x85
992	450x85
2141	440x41,6
981	500x85
993	550x85
982	600x85
986	650x85
987	700x85
988	750x85
989	800x85
990	850x85
991	900x85

Dimensions Group 1 (A x B) From 7.8x7.8 to 38x54

Dimensions Group 2 (A x B) From 40x7.62 to 72x30

Dimensions Group 3 (A x B) From 74x30 to 114x25

Dimensions Group 4 (A x B) From 114x40.5 to 150x26

Dimensions Group 5 (A x B) From 150x26 to 215x77

Dimensions Group 6 (A x B) From 215x77 to 900x85
