ALUMINUM HEAT SINKERS FOR ELECTRONICS : online list / catalogue

List of aluminum profiles suitable for the creation of heat sinks, available in stock at our warehouse in Rho/Pero (Milan) even for small quantities, if the most suitable section is not present in this list of standard heat sinks, we can make made-to-measure aluminum profiles, following the Customer's specifications/drawing. We can carry out cuts to size, numerical control machining and anodic oxidation on aluminum profiles.

aluminum heat sink

Complete range of our aluminum profiles available on the website: www.omar- Alluminio.it

dimension drawing aluminum heat sink

Heat sink table sorted by the size indicated in the drawing with "A". The length of the bars (indicated in the drawing with "L") varies from 2 to 4 meters depending on the heat sink model. Custom cuts are made on aluminum profiles

Code	AxB (mm)	DRAWING (OUT OF SCALE)
883	40x7,62
888	40x9
649	40x10
528	40x28,5
409	40x60
412	40x48
834	40,1x35
934	40,82x24,99
403	41x25
2266	41,4x30,5
915	41,4x34
2219	41,4x41,4
919	42x15

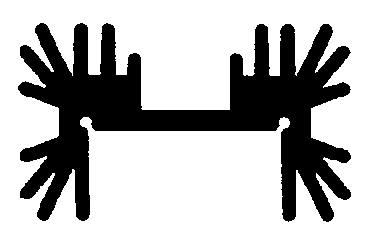

419	42x25

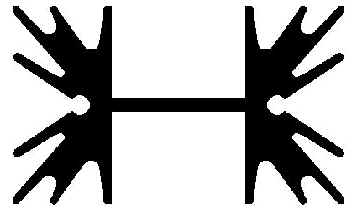

447	42x25
953	42,7x38
945	42,8x8
914	42x44
2134	44x12
441	45x25
531	45x45

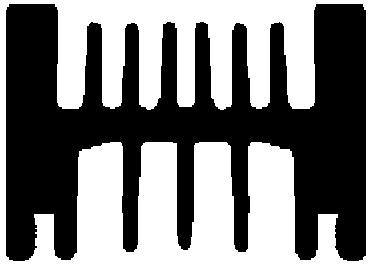

617	46x33
618	46x33
2075	46x46
2074D46	46x46
2072D46	46x46
882	47,5x19

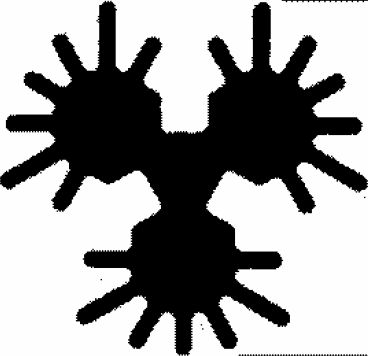

545	46x46
2181	48x39,5
428	48,07x36,75
2074	49x49
801	50x12
815	50x24

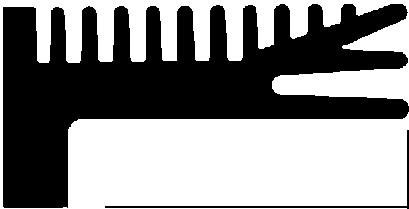

972	50x27
2061	50x31,7
2158	50x40
416	50x47
2072	50x50
503	50x50
537	50x50

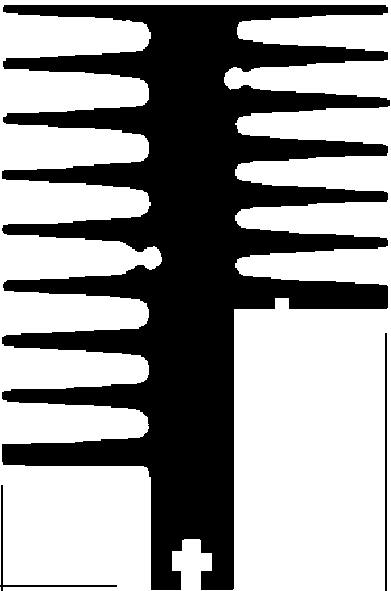

415	50x75
963	52x40
916	52,5x70
892	53x26
944	52,76x5
405	54x22,5
863	54,48x17,95
651	55x22,5
857	56x40
939	56,72x16
505	59x59
856	59,43x25,3
843	60x15
816	60x24
913	60x83
413	61,2x28
938	61,5x32
961	62x75
832	64,5x9
841	65x19,5
817	65x24
951	65x24
813	65x70
906	66x40
449	66x44
410	66x89
2198	66x87
2112	67,5x25
802	70x16
423	70x25,5
2176	70x35,5
2073D70	70x70
2254	70x70
831	72x30

Dimensions Group 1 (A x B) From 7.8x7.8 to 38x54

Dimensions Group 2 (A x B) From 40x7.62 to 72x30

Dimensions Group 3 (A x B) From 74x30 to 114x25

Dimensions Group 4 (A x B) From 114x40.5 to 150x26

Dimensions Group 5 (A x B) From 150x26 to 215x77

Dimensions Group 6 (A x B) From 215x77 to 900x85

Other way to search heat sinks by section type:

Comb-section aluminum heat sink assembly

Aluminum heat sink assembly with "double vertical comb" section

Heatsink group with section

Heatsink group with section

Heatsink group with section

Heatsink group with section

Heatsink group with section

Heat sink unit with "round finned" section for electric motors

Heat sink group with finned container section for electronic equipment

"Round - flower for LED" heatsink group

Heatsink assembly "pre-drilled and anodized heat sinks"
